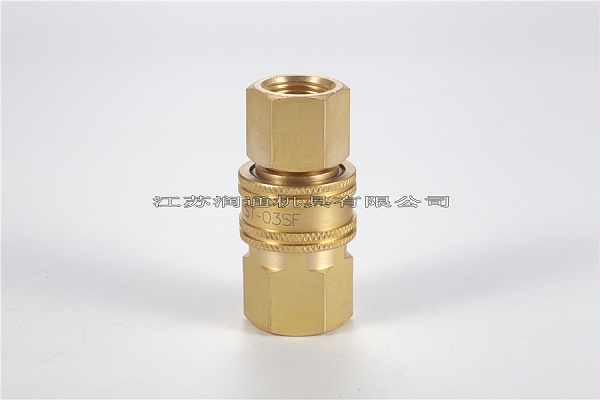

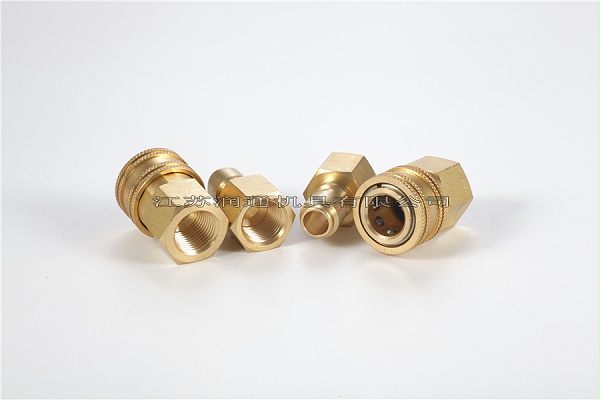

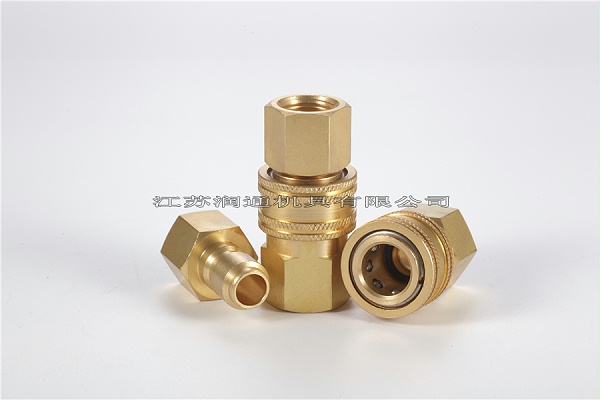

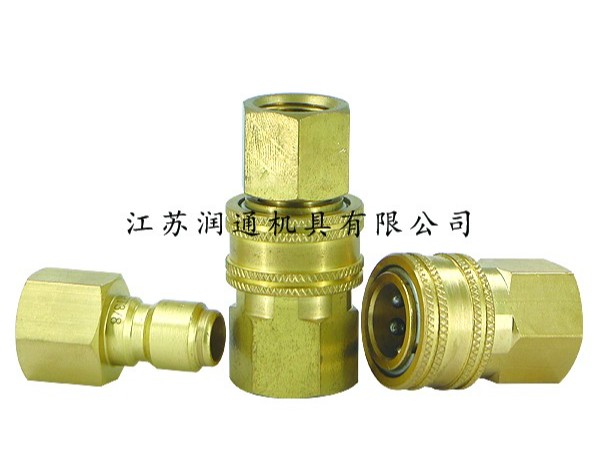

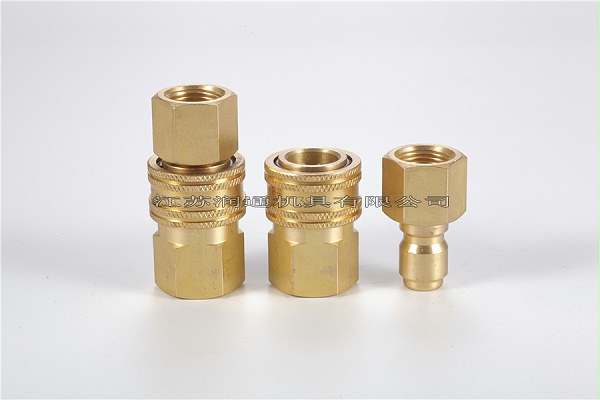

HST美式液压快速接头(024)
产品简介
产品材料：母体：碳钢/黄铜 /公头：碳钢/黄铜 /
产品描述：无阀系列快速接头
产品应用：HST系列为无阀芯接头，用于需要高流量的应用、高压水和蒸汽冲洗设备、地毯清洁设备及铸模冷却管路方面的应用。其通常用于食品加工、流体及燃料转换生产线
互换性：美国派克（PARKER）ST系列、美国 汉森（HANSEN）ST系列、德国费斯托（FOSTER）FST 系列
电话咨询：13901431334
- 产品详情 ...

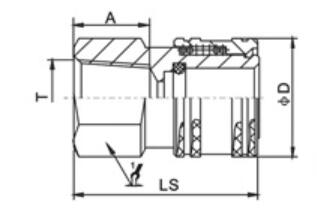

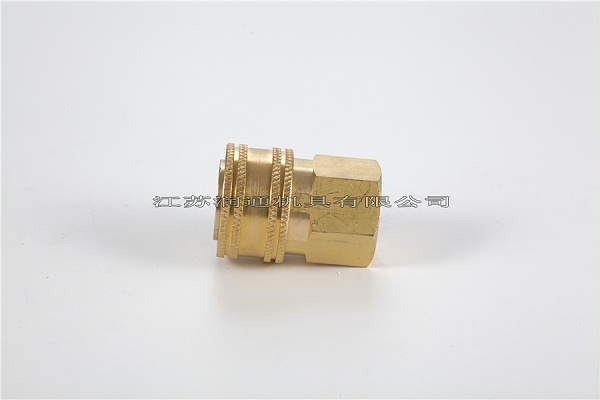

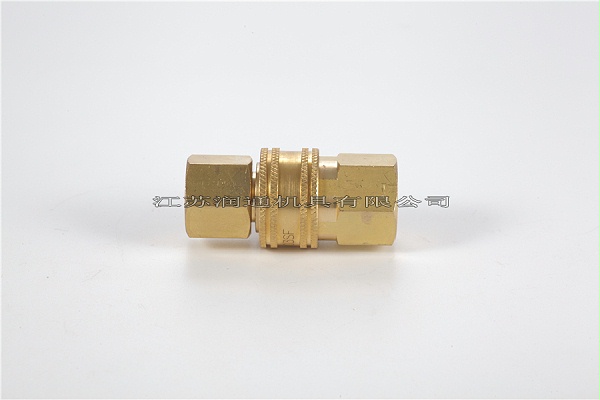

母插座
| PART NO. | LS |
￠D |
HEX1 | A | T |
| HST-01SF | 27 | 18 | 14 | 10 | NPT1/8 |
| HST-02SF | 37 | 24 | 19 | 12 | NPT1/4 |
| HST-03SF | 41.5 | 29 | 24 | 13 | NPT3/8 |
| HST-04SF | 51 | 33 | 29 | 15 | NPT1/2 |
| HST-06SF | 53.4 | 40.9 | 38 | 19 | NPT3/4 |
| HST-08SF | 66 | 50.5 | 44.45 | 22 | NPT1 |

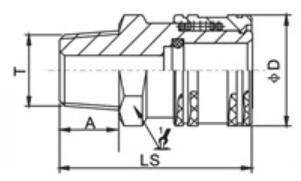

| PART NO. | LS |
￠D |
HEX1 | A | T |
| HST-01SM | 29 | 18 | 14 | 10 | NPT1/8 |
| HST-02SM | 39.5 | 24 | 19 | 12 | NPT1/4 |
| HST-03SM | 43 | 29 | 24 | 13 | NPT3/8 |
| HST-04SM | 53 | 33 | 29 | 15 | NPT1/2 |
| HST-06SM | 56.7 | 40.9 | 38 | 19 | NPT3/4 |
| HST-08SM | 61.1 | 50.5 | 44.45 | 24 | NPT1 |

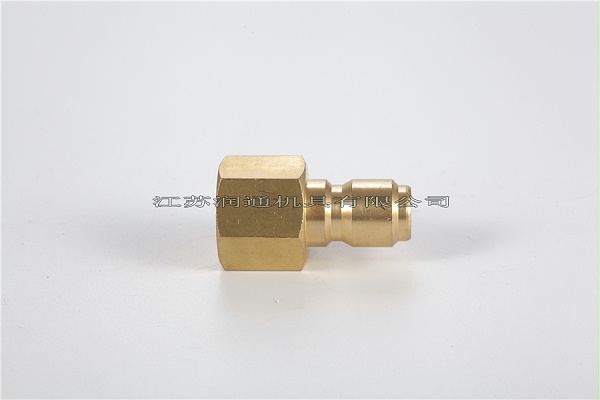

公插头
| PART NO. | LP | C | HEX2 | A | T |
| HST-01PF | 27 | 17 | 14 | 10 | NPT1/8 |
| HST-02PF | 37 | 19.5 | 17 | 12 | NPT1/4 |
| HST-03PF | 41.5 | 22.5 | 22 | 13 | NPT3/8 |
| HST-04PF | 51 | 26 | 27 | 15 | NPT1/2 |
| HST-06PF | 562 | 28.5 | 30 | 20 | NPT3/4 |
| HST-08PF | 62.4 | 30.5 | 35 | 22 | NPT1 |

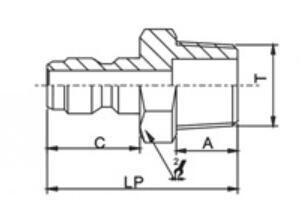

| PART NO. | LP | C | HEX2 | A | T |
| HST-01PM | 29 | 17 | 11 | 10 | NPT1/8 |
| HST-02PM | 39.5 | 19.5 | 14 | 12 | NPT1/4 |
| HST-03PM | 43 | 22.5 | 17- | 13 | NPT3/8 |
| HST-04PM | 53 | 26 | 22 | 15 | NPT1/2 |
| HST-06PM | 57.2 | 28.5 | 27 | 19 | NPT3/4 |
| HST-08PM | 62.4 | 30.5 | 35 | 22 | NPT1 |
