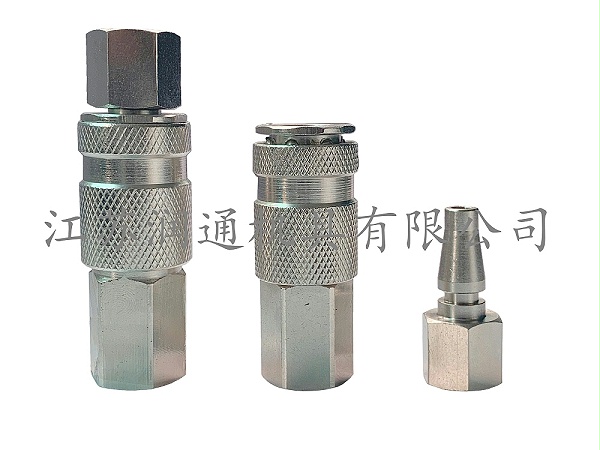

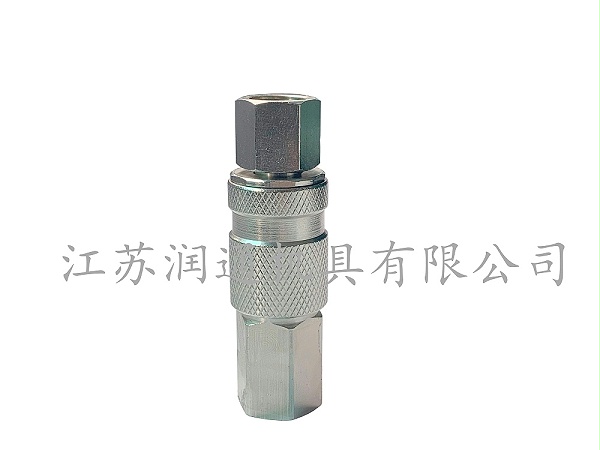

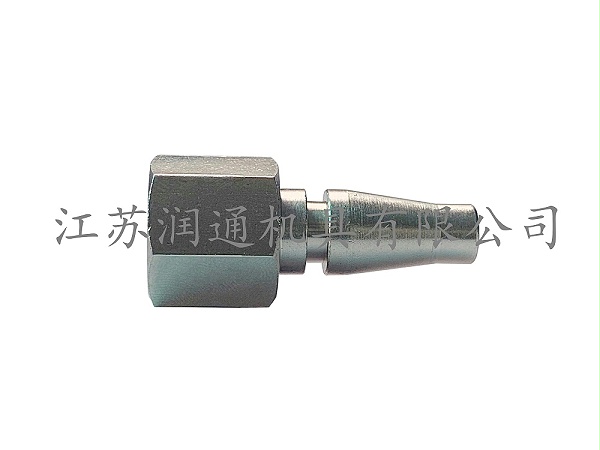

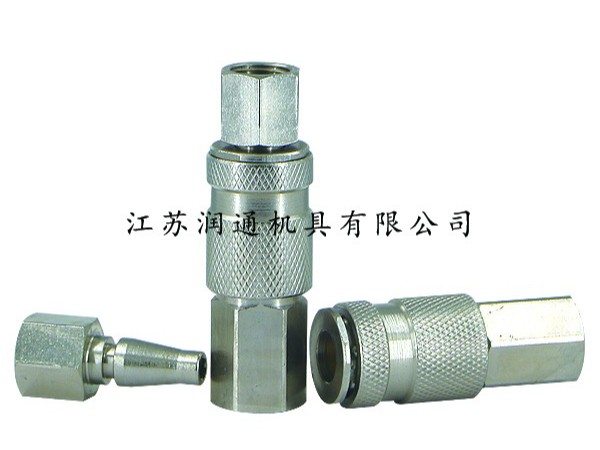

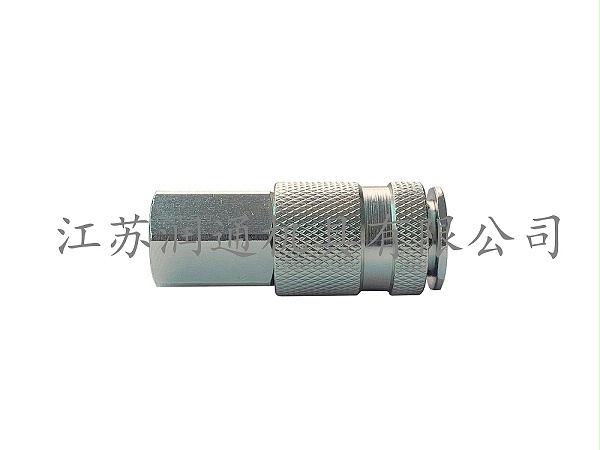

HS-17开闭式气动快速接头(黄铜)(055)
产品简介
产品材料:母体:黄铜 /公头:黄铜 /
.产品描述:单手操作，单开闭阀。
产品应用:HS-17系列接头广泛应用于气动工具、测量和控制设备、压缩空气。
互换性:德国利达时（RECTUS）17KA系列。
电话咨询：13901431334
- 产品详情 ...
HS-17开闭式气动快速接头具有以下特征
产品描述：单手操作，单开闭阀
技术优势：单手操作，大流量
工作压力：1.0Mpa
工作温度：-20℃+120℃
产品应用：HS-17系列接头广泛应用于气动工具、测量和控制设备、压缩空气
互换性：德国利达时（RECTUS）17KA系列
| PART NO. | LS |
ΦD |
HEX1 | A | T | ￠d |
| HS-17-02SM | 62.5 | 23.5 | 19 | 13 | ZG1/4 | 7 |
| HS-17-03SM | 59.5 | 23.5 | 19 | 13 | ZG3/8 |
11 |
| HS-17-04SM | 60 | 23.3 | 22 | 14 | ZG1/2 | 14 |
| PART NO. | LP | C | HEX2 | A | T | ￠d |
| HS-17-02PM | 44 | 25 | 14 | 13 | ZG1/4 | 4.6 |
| HS-17-03PM | 44.5 | 25 | 17 | 13 | ZG3/8 | 4.6 |
| PART NO. | LS |
ΦD |
HEX1 | A | T | ￠d |
| HS-17-02SF | 58 | 23.3 | 19 | 10 | G1/4 |
14 |
| HS-17-03SF | 57 | 23.3 | 19 | 9 | G3/8 |
14 |
| HS-17-04SF | 60 | 23.3 | 24 | 12 | G1/2 | 14 |
| PART NO. | LP | C | HEX2 | A |
T |
￠d |
| HS-17-02PF | 41 | 25 | 17 | 13 | G1/4 | 4.6 |
| HS-17-03PF | 41 | 25 | 19 | 13 | G3/8 | 4.6 |
| PART NO. | LS |
ΦD |
HEX1 | A | T | ￠d |
| HS-17-01SH | 72 | 23.5 | 19 | 20 | 7 | 4 |
| HS-17-02SH | 76 | 23.3 | 19 | 25 | 10 | 5 |
| HS-17-03SH | 76 | 23.3 | 19 | 25 | 13 | 7.5 |
| PART NO. | LP | C |
￠CP |
A |
￠T |
￠d |
| HS-17-01PH | 47.5 | 25 | 15 | 20 | 7 | 4.6 |
| HS-17-02PH | 52.5 | 25 | 15 | 25 | 9 | 4.6 |
| HS-17-03PH | 52.5 | 25 | 15 | 25 | 11 | 4.6 |
