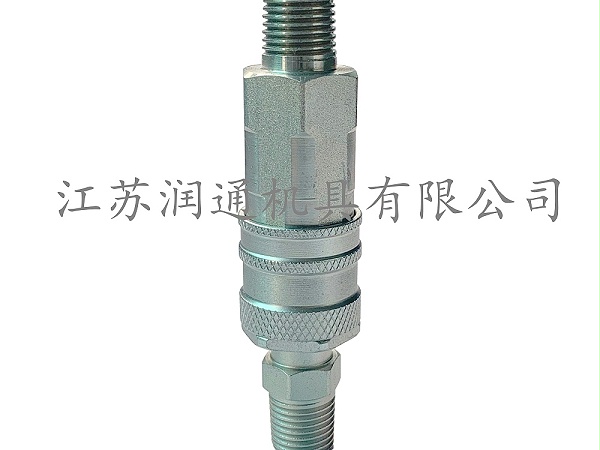

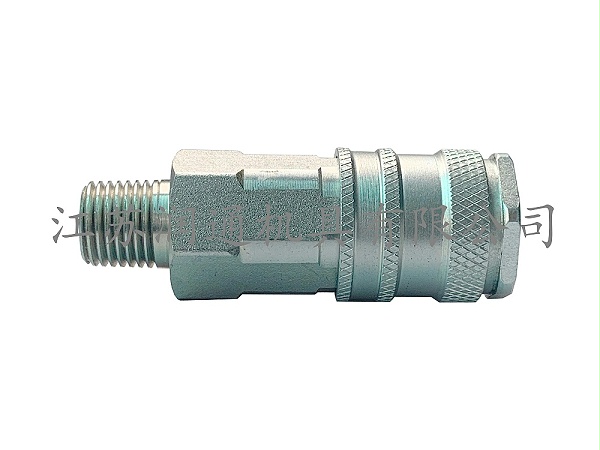

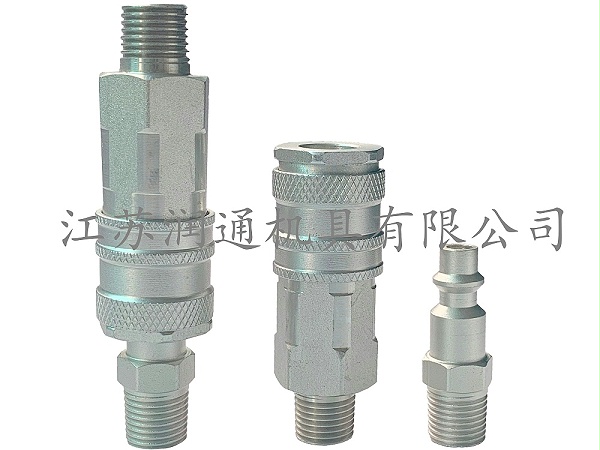

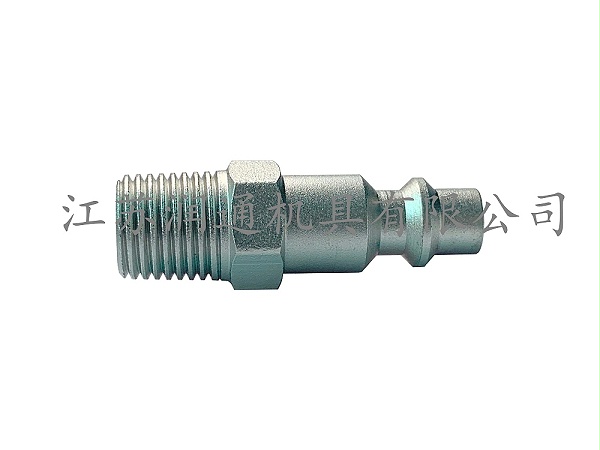

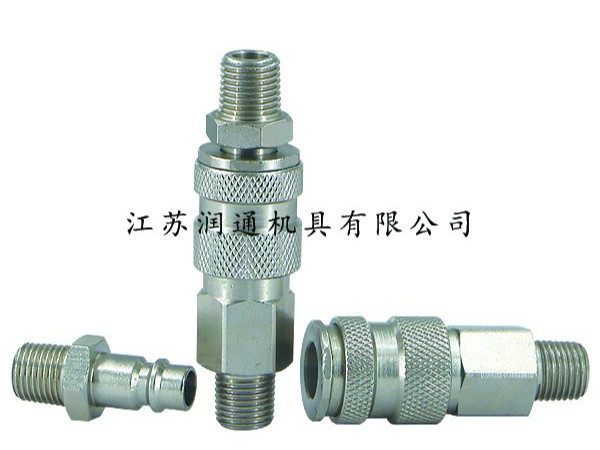

HS-25开闭式气动快速接头(黄铜)(057)
产品简介
产品材料:母体:黄铜 /公头:黄铜 /
产品描述:欧洲广泛使用的连接头型式
产品应用:HS-25系列接头广泛应用于气动工具、生产和装配线、机械设备
互换性:瑞典希恩（CEJN）320系列、德国利达时（RECTUS）25KA/26KA系列
电话咨询：13901431334
- 产品详情 ...
HS-25开闭式气动快速接头具有以下特征
技术优势：单手操作，超大流量，广泛的互换性，多种连接备选
工作压力：1.0Mpa
工作温度：-20℃+120℃
产品应用：HS-25系列接头广泛应用于气动工具、生产和装配线、机械设备
互换性：瑞典希恩（CEJN）320系列、德国利达时（RECTUS）25KA/26KA系列
|
PART NO. |
LS |
ΦD |
HEX1 | A | T | ￠d |
| HS-25-02SM | 61.5 | 23.3 | 19 | 13 | ZG1/4 | 7 |
| HS-25-03SM | 60 | 23.3 | 19 | 13 | ZG3/8 | 11 |
| HS-25-04SM | 57.5 | 23.3 | 22 | 14 | ZG1/2 | 14 |
|
PART NO. |
LP | C | HEX2 | A | T | ￠d |
| HS-25-02PM | 39.5 | 20.5 | 17 | 13 | ZG1/4 | 7.5 |
| HS-25-03PM | 40 | 20.5 | 17 | 13 | ZG3/8 | 7.5 |
| PART NO. | LS |
ΦD |
HEX1 | A | T | ￠d |
| HS-25-02SF | 55.5 | 23.3 | 19 | 10 | G1/4 |
14 |
| HS-25-03SF | 54.5 | 23.3 | 19 | 9 | G3/8 | 14 |
| HS-25-04SF | 57.5 | 23.3 | 24 | 12 | G1/2 | 14 |
| PART NO. | LP | C | HEX2 | A |
T |
￠d |
| HS-25-02PF | 36.5 | 20.5 | 17 | 13 | G1/4 | 7.5 |
| HS-25-03PF | 36.5 | 20.5 | 19 | 13 | G3/8 | 7.5 |
|
PART NO. |
LS |
ΦD |
HEX1 | A |
ΦT |
￠d |
| HS-25-01SH | 70 | 23.3 | 19 | 20 | 7 |
4 |
| HS-25-02SH | 73.5 | 23.3 | 19 | 25 | 19 | 5 |
| HS-25-03SH | 73.5 | 23.3 | 19 | 25 | 11 | 7.5 |
| PART NO. | LP | C | ￠CP | A |
ΦT |
￠ d |
| HS-25-01PH | 43 | 20.5 | 15 | 20 | 7 | 7.5 |
| HS-25-02PH | 48 | 20.5 | 15 | 25 | 19 | 7.5 |
| HS-25-03PH | 48 | 20.5 | 15 | 25 | 11 | 7.5 |
