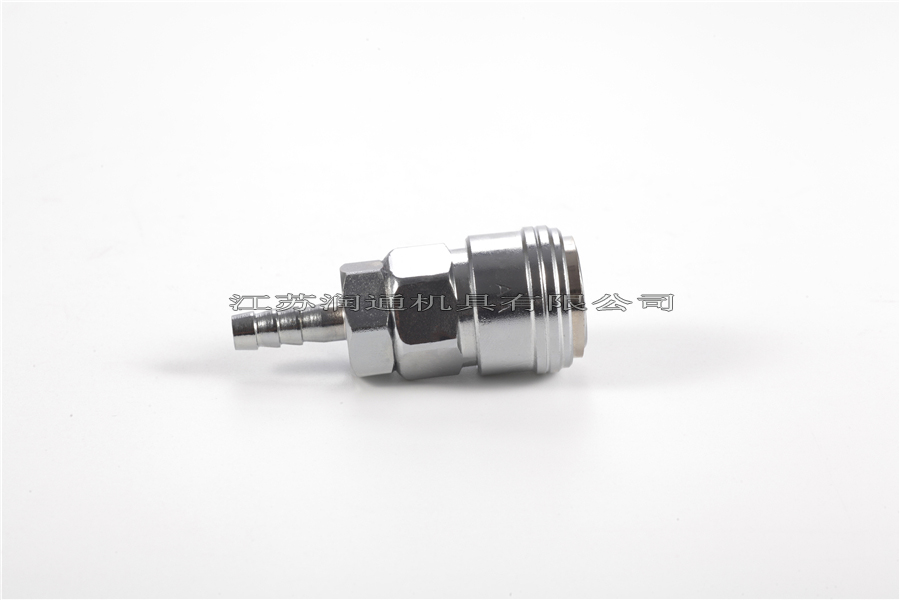

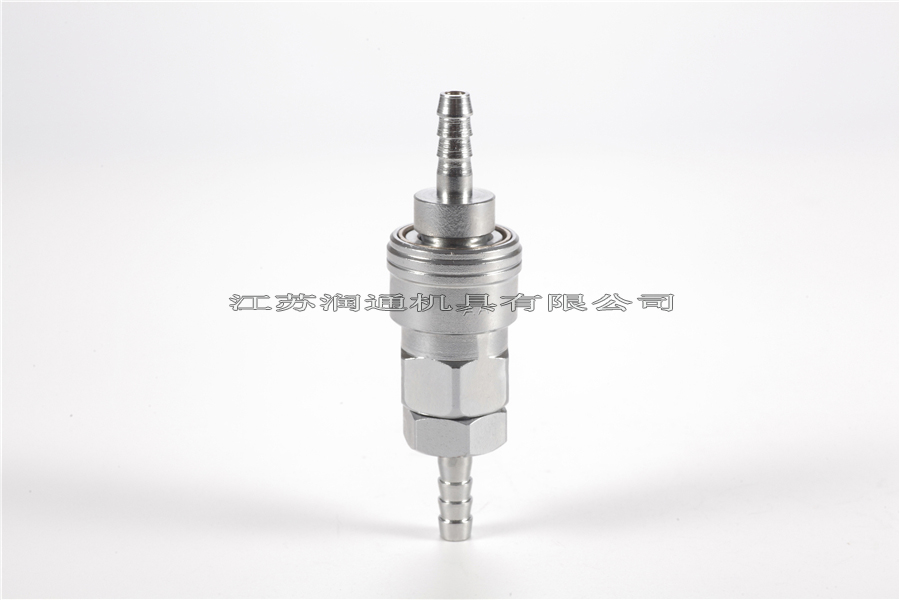

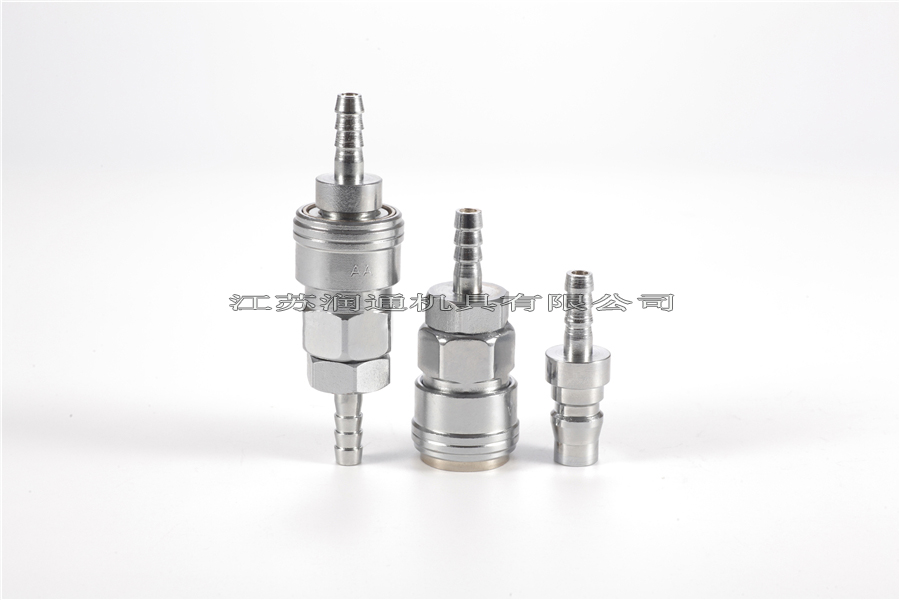

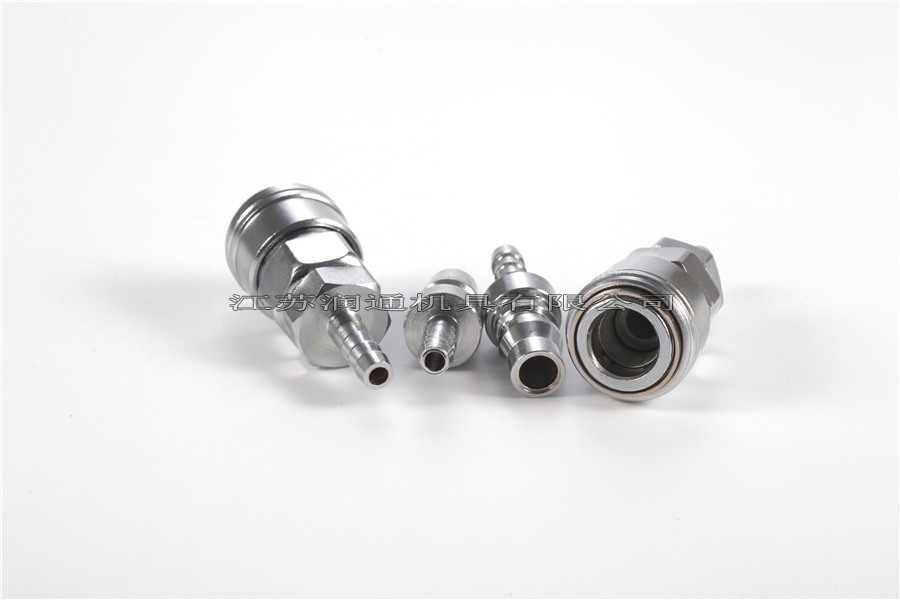

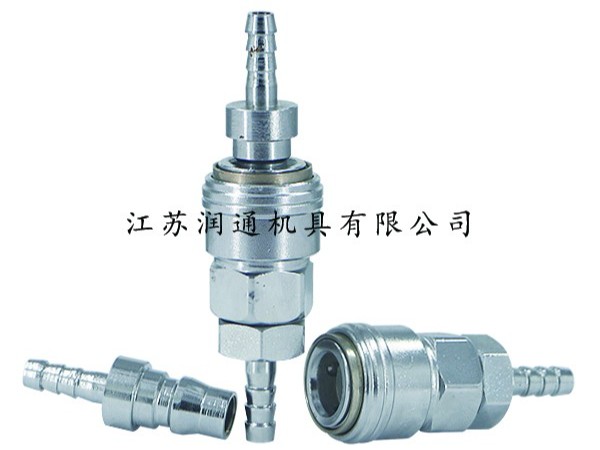

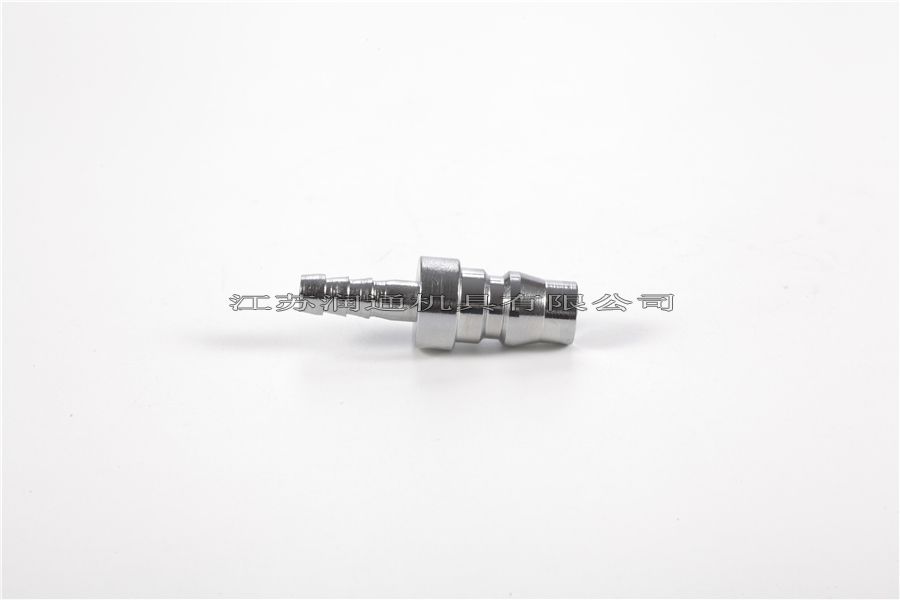

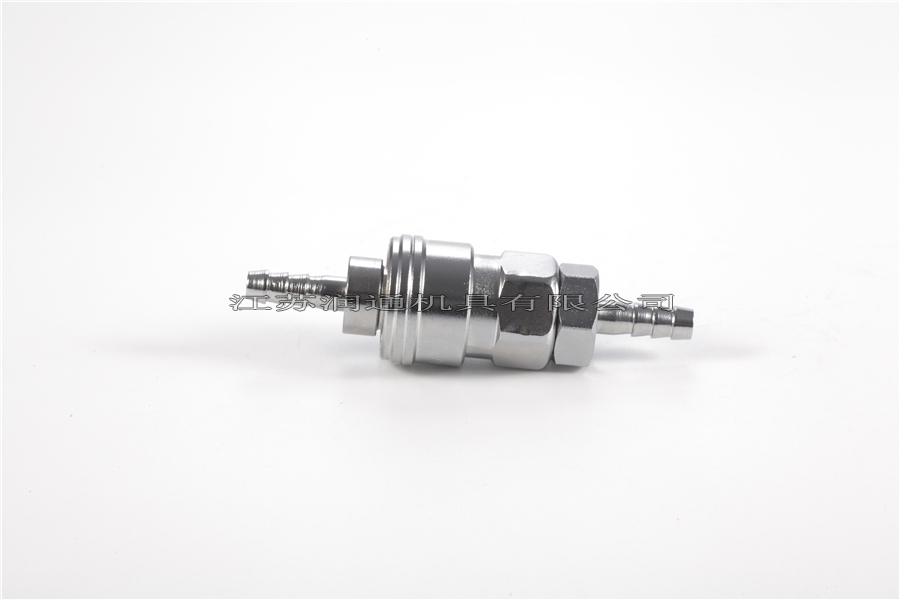

HS-AA单手半自动快速接头(碳钢)(051)
产品简介
产品材料：母体：碳钢 /公头：碳钢 /
产品描述：单手操作
技术优势：单手操作、重量轻，流量高，多种连接备选工作压力：1.0Mpa /工作温度： -20℃+120℃
产品应用：HS-AA系列接头广泛应用于 气动工具、汽车工业、工程机械
互换性：日东(NITTO)HI-CUPLA系列、瑞典希恩(CEJN)315系列、德国利达时(RECTUS)13KA系列
电话咨询：13901431334
- 产品详情 ...
产品材料：母体：碳钢 /公头：碳钢 /产品描述： 单手操作
技术优势：单手操作、重量轻，流量高，多种连接备选
工作压力：1.0Mpa /工作温度： -20℃+120℃
产品应用：HS-AA系列接头广泛应用于 气动工具、汽车工业、工程机械
互换性：日东(NITTO)HI-CUPLA系列、瑞典希恩(CEJN)315系列、德国利达时(RECTUS)13KA系列
| PAPT NO | LS |
￠D |
HEX1 | A | ￠T | d |
| HS-AA-01SH | 64.5 | 26.5 | 19 | 20 | 7 | 4 |
| HS-AA-02SH | 64.5 | 26.5 | 19 | 25 | 9 | 5 |
| HS-AA-03SH | 64.5 | 26.5 | 19 | 25 | 11 | 7 |
| PAPT N0 | LS |
￠D |
HEX1 | A | T(BPS) | d |
| HS-AA-02SF | 52.5 | 26.5 | 19 | 13 | BPS1/419P | 10 |
| HS-AA-03SF | 53.5 | 26.5 | 19 | 13 | BPS3/819P | 10 |
| HS-AA-04SF | 54.5 | 26.5 | 19 |
14 |
BPS1/214P | 10 |
|
PAPT NO |
LS |
￠D |
HEX1 | A | T(PT) | d |
| HS-AA-02SM | 50 | 26.5 | 19 | 13 | PT1/419P | 7 |
| HS-AA-03SM | 50 | 26.5 | 19 | 13 | PT3/819P | 10 |
| HS-AA-04SM | 53.5 | 26.5 | 22 | 16 | PT1/214P | 11.5 |
| PAPT NO | LS |
￠D |
HEX1 | A | T | d |
| HS-AA-01SF | 50.5 | 26.5 | 19 | 14 | 6*4 | 2.8 |
| HS-AA-02SF | 52 | 26.5 | 19 | 15 | 8*5 | 4 |
| HS-AA-03SF | 54 | 26.5 | 19 | 17 | 10*6.5 | 5 |
| HS-AA-04SF | 55.5 | 26.5 | 19 | 19 | 12*8 | 6.5 |
|
PAPT NO |
LP | C | ￠CP | A |
￠T |
d |
| HS-SS-01PH | 47.5 | 20.5 | 16 | 20 | 7 | 7.5 |
| HS-SS-02PH | 52.5 | 20.5 | 16 | 25 | 9 | 7.5 |
| HS-SS-03PH | 52.5 | 20.5 | 16 | 25 | 11 | 7.5 |
| PAPT NO | LP | C | HEX2 | A | T(BPS) | d |
| HS-AA-02PF | 36.5 | 20.5 | 17 | 13 | BPS1/419P | 7.5 |
| HS-AA-03PF | 36.5 | 20.5 | 19 | 15 | BPS3/819P | 7.5 |
| HS-AA-04PF | 41.5 | 20.5 | 24 | 16 | BPS1/214P | 7.5 |
| PAPT NO | LP | C | HEX2 | A | T(PT) | d |
| HS-AA-02PM | 36.5 | 20.5 | 17 | 13 | PT1/419P | 7.5 |
| HS-AA-03PM | 36.5 | 20.5 | 19 | 13 | PT3/819P | 7.5 |
| HS-AA-04PM | 41.5 | 20.5 | 24 | 13 | PT1/214P | 7.5 |
|
PAPT NO |
LP | C | HEX2 | A | T | d |
| HS-AA-01PP | 40 | 20.5 | 14 | 14 | 6*4 | 7.5 |
| HS-AA-02PP | 41 | 20.5 | 14 | 15 | 8*5 | 7.5 |
| HS-AA-03PP | 43 | 20.5 | 17 | 17 | 10*6.5 | 7.5 |
| HS-AA-04PP | 45.5 | 20.5 | 19 | 19 | 12*8 | 7.5 |
